Precision Compasses - J 442 Series


Precision Compass

  • Brass bow compass with gear head in nickle plated & satin finish
  • Hinged lead and needle legs
  • Interchangeable lead part with universal adapter or extension bar
  • Max circle diameter : 320 mm, With extension bar : 600 mm Approx.


Line



Precision Compass

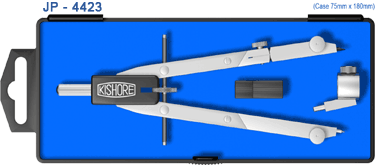

JP - 4423
(Case 75 mm x 180 mm)
  • K 442 Gear Head Bow Compass (MCD : 320 mm Approx.), Hinged Lead & Needle Legs
  • With Universal Adapter 4Ø
  • Lead Box 2 mm

JP 4423
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
120
520 x 430 x 280
25.60
0.0626
10
210 x 170 x 130
2.15
0.0046


Line



Precision Compass

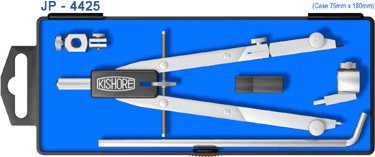

JP - 4425
(Case 75 mm x 180 mm)
  • K 442 Gear Head Bow Compass (MCD : 320 mm Approx.), Hinged Lead & Needle Legs
  • With Universal Adapter 4Ø
  • Extension Bar 4Ø (MCD : 600 mm Approx.)
  • Adapter
  • Lead Box 2 mm

JP 4425
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
120
520 x 430 x 280
30.38
0.0626
10
210 x 170 x 130
2.54
0.0046



Line
