Precision Compasses - J 332 Series

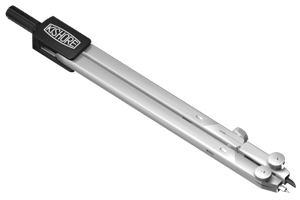

Precision Compass

  • Brass compass with gear head in nickle plated & satin finish
  • Hinged neelde and lead legs
  • Interchangeable lead part with universal adapter made of brass
  • Max circle diameter : 250 mm Approx.
  • Also available in aluminium

Line



Precision Compass

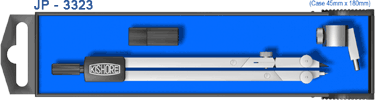

JP - 3323
(Case 45 mm x 180 mm)
  • K 332 Gear Head Compass (MCD : 250 mm Approx.), Hinged Lead & Needle Legs
  • With Universal Adapter 3.5Ø
  • Lead Box 2 mm

JP 3323
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
200
530 x 434 x 230
29.15
0.0529
25
260 x 212 x 105
3.50
0.0058


Line



Precision Compass

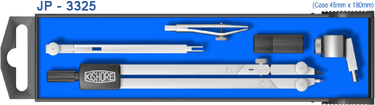

JP - 3325
(Case 45 mm x 180 mm)
  • K 332 Gear Head Compass (MCD : 250 mm Approx.), Hinged Lead & Needle Legs
  • With Universal Adapter 3.5Ø
  • Inker 3.5Ø
  • Hinged Extension Bar 3.5Ø Spigot
  • Lead Box 2 mm

JP 3325
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
200
530 x 434 x 230
32.80
0.0529
25
260 x 212 x 105
3.95
0.0058


Line



Precision Compass

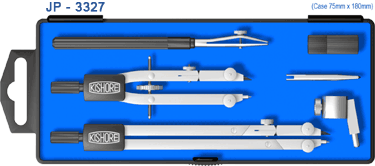

JP - 3327
(Case 75 mm x 180 mm)
  • K 332 Gear Head Compass (MCD : 250 mm Approx.), Hinged Lead & Needle Legs
  • With K 111 Compass (MCD : 90 mm Approx.)
  • Universal Adapter 3.5Ø
  • Inker 3.5Ø
  • Pointer 3.5Ø
  • Plastic Holder 3.5Ø
  • Lead Box 2 mm

JP 3327
Pcs. Qty.
L x W x H, mm
gr. wt. JGs.
cu. mtr. CBM
120
520 x 430 x 280
26.45
0.0626
10
210 x 170 x 130
2.20
0.0046



Line
